RenderFact EDM Machining

At Renderfact, we use advanced equipment to offer you a variety of EDM machining services including EDM Wire-cut, EDM Sinker and EDM Drilling. Electrical Discharge Machining (EDM) is the process of cutting metal to precise shapes using electricity. EDM machining (electrical discharge machining also known as spark machining) is one of the most accurate manufacturing processes available for creating complex shapes and geometries within parts and assemblies. The absence of heavy force facilitates adherence to tight, repeatable tolerances and results in remarkable consistency. It is also easy to produce highly complex or contoured shapes with wire EDM machining, providing greater flexibility to designers.

Renderfact brings together years of EDM expertise with advanced sinker, EDM Drill and wire style EDM machines that utilize the latest computer systems. Our EDM Machine Shop allows us to manufacture parts that cannot be drilled, tapped, or milled in small, detailed and hard-to- reach areas.

Below are some of the benefits of EDM Machining and How it Works!

Advantages of EDM Machining

Superior Consistency

Throughout the duration of the cutting process, conventional cutting tools can wear down or even break, resulting in tiny inconsistencies in the final product. Wire EDM cycles new wire between spools to produce consistent electrode quality, which lends itself to repeatable wire cuts.

Simultaneous Cutting

In some cases, the EDM wire can cut through stacked sheets of metal to produce identical OEM components at the same time; this multiplies productivity, saving you time and money.

Eliminates Finishing

Wire EDM cuts produces ultra-fine finishes which do not require additional surface treatments. A product coming out of our wire EDM machines is pretty much ready to go.

No physical contact with the machine part

EDM does not use impact or abrasion to achieve its goals. In fact, the EDM tool never makes physical contact with the part being machined. This is a significant advantage. Because the EDM tool never makes physical contact with the part being machined, that part is not deformed, nor does it sustain heat damage or imperfections like burrs.

Extremely precise

wire electrical discharge machining is widely considered to be the most precise manufacturing method in use today. Common tolerances for machined parts with EDM are around ± 0.0001”.

Highly repeatable

Wire EDM can be used to create intricate parts repeatedly, with the exact same accuracy and no decrease in part quality.

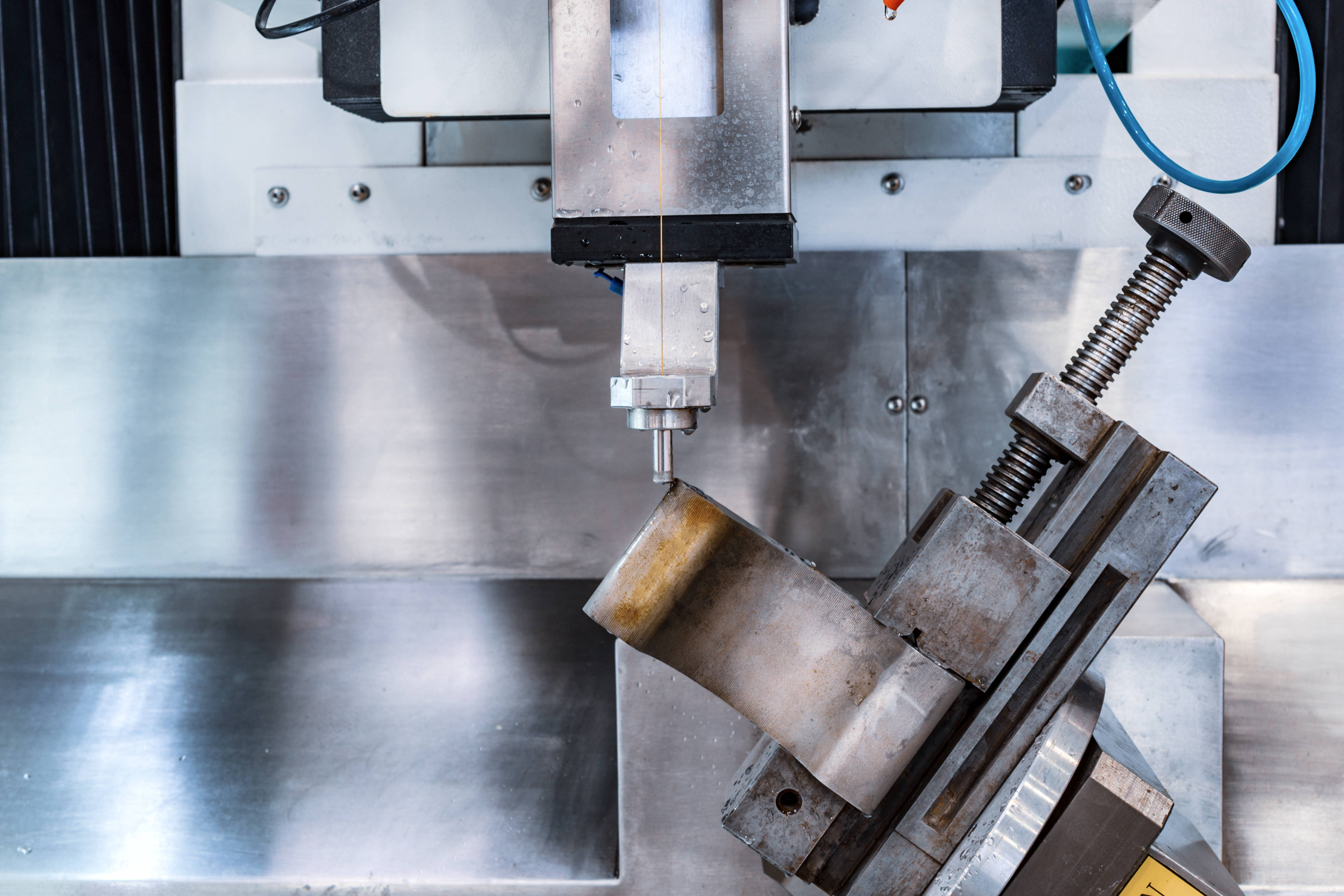

EDM Drill

Small hole EDM drilling is ideal for creating injection nozzles in molds and coolant holes in tooling, as well as start holes for wire EDM operations. Since both processes are types of electrical discharge machining (EDM), it is often more economical to use this combination for hardened materials.

Hole drilling EDM uses low-cost electrode tube (normally brass or copper material) to drill holes on an electrically conductive material at a very high speed, the hole depth diameter ratio can reach up to 200. The hole diameter is normally from 0.3mm to 3.0mm, with five axis configuration the machine can drill hole at any angles on an inclined surface. This technology is widely used for drilling holes in aerospace, energy, cutting tools, automotive, medical, mold and die industries.

Start hole EDM is a specifically quick and efficient metalworking method, which can be applied to process very thin as well as very thick materials., our start hole EDM, electric spark erosion can be used to machine the smallest holes by electrodes quickly, smoothly, free from burrs, and precisely into almost any conductive material.

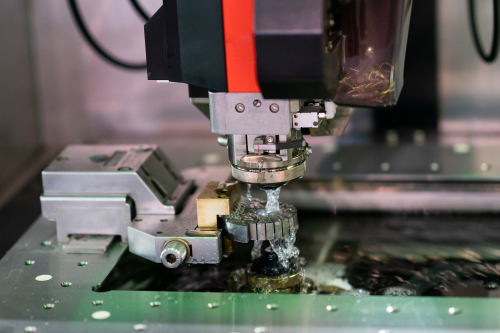

EDM Wirecut

EDM Wire-cut also known as Wire burning or cutting, Wire Electrical Discharge Machining uses a thin wire electrode (0.005″–0.010″ in diameter) made from brass or copper to cut conductive material along a pre-programmed path. Wire EDM machines use a thin wire that produces a recurring electrical discharge between the wire and the workpiece to cut into the work material, which is flushed and cooled with deionized water. Since the wire never touches the metal, the process produces a clean surface finish that does not require deburring, making it ideal for applications involving intricate designs.

Renderfact takes pride in the ability to take on any job regardless of the complexity. Through our state-of-the-art EDM department, we manufacture parts that would not be possible with conventional machining Using a strand of wire as a cutting tool creates a linear line, and therefore Wire EDM services are commonly used to cut all the way through the material. Wire EDM is best suited for projects that have intricate tolerances and material stress limitations.

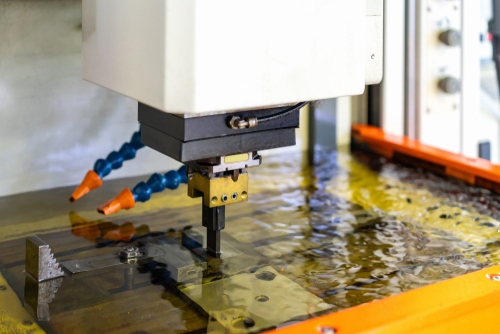

EDM Sinker

A sinker EDM has many uses from making starting holes for wire EDM to mirroring an electrode shape into the desired shape in the part. Sinker EDM machines use an electrode and workpiece submerged in liquids such as oil or dielectric water.Power supply is connected to the electrode and generates electrical potential between both parts, producing a breakdown to form a plasma channel and spark jumps. The sparks initiated by the power supply often strike one after another. As the sparks continue to form, the base metal begins to erode and the electrode is lowered, causing the “ramming” or “sinking” effect of this EDM machine. When the process is complete and every part has been removed, the base metal has been eroded in a very specific shape or design – like an engraving. EDM machines allow for quicker manipulations of hard metals giving companies the best efficiency available today for industrial productions.

EDM sinker burns any electrically conductive material, whether soft or hard, without inducing stresses into the material. Die-sinker EDMs often can solve the problems posed by machining materials such as high-nickel-content alloys used in the aerospace industry. Also, the complicated shapes and deep pockets commonly found in the mold making industry are two-part features that pose a challenge to CNC chipping machines. However, these geometries lend themselves well to the CNC die-sinking process.

Materials

EDM Machining works on metals such as aluminum, brass, copper, tool steel and other materials like titanium, tungsten, carbide, molybdenum and other exotic metals.

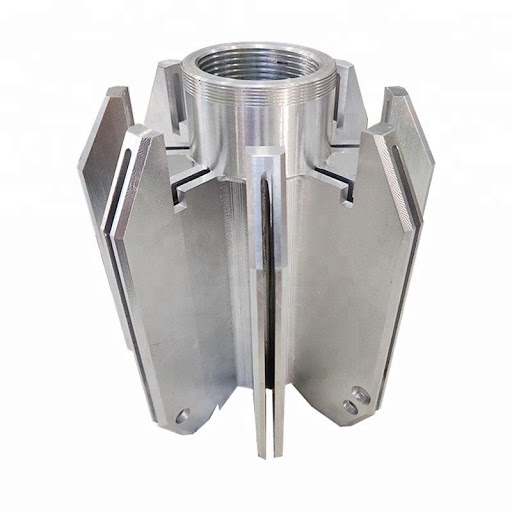

Aluminum

Aluminum is a highly ductile metal, making it easy to machine. The material has a good strength-to-weight ratio and is available in many types for a range of applications.

Aluminum 6061

Aluminum 6061-T651

Aluminum 6063

Aluminum 7075

Aluminum 6082

Aluminum 2024

Aluminum 5052

Aluminum 5083

Aluminum ADC12 (A380)

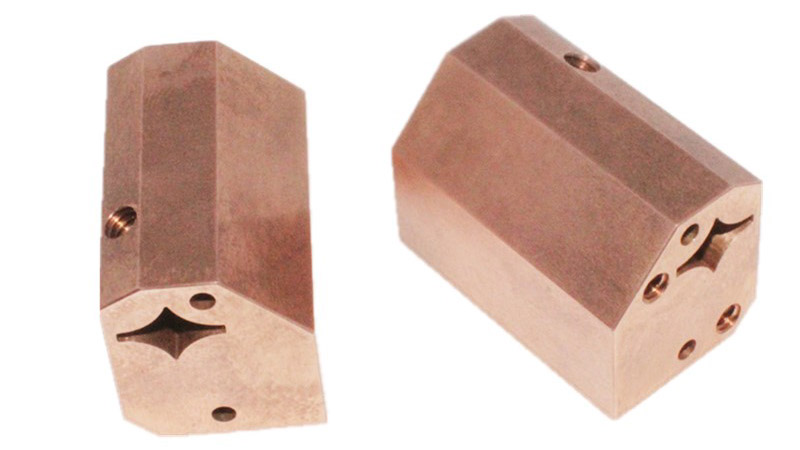

Copper

Copper displays excellent thermal conductivity, electrical conductivity and plasticity. It is also highly ductile, corrosion resistant and can be easily welded.

Copper

Copper 101

Copper for EDM

Beryllium copper

Chromium zirconium copper

Tungsten copper

Antimony copper

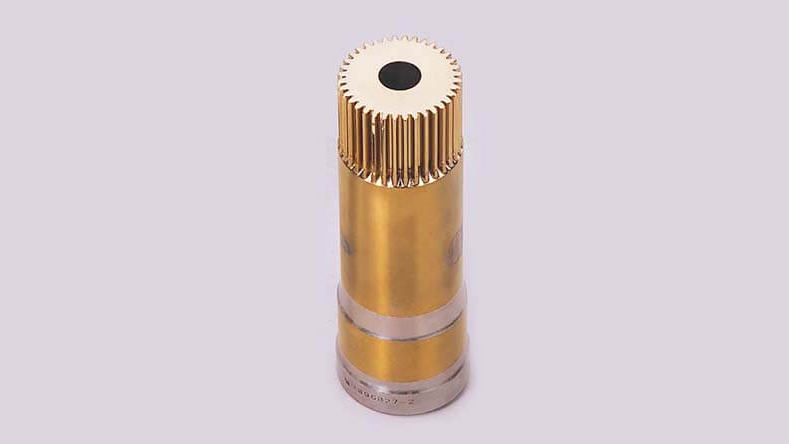

Brass / Bronze

Brass has desirable properties for a number of applications. It is low friction, has excellent electrical conductivity and has a golden (brass) appearance.

Brass 2680

Brass H59

Brass H62

Brass 260

Brass 385

Brass CAD260

Brass 360

Tin phosphor bronze

Aluminum bronze plate

Tin bronze

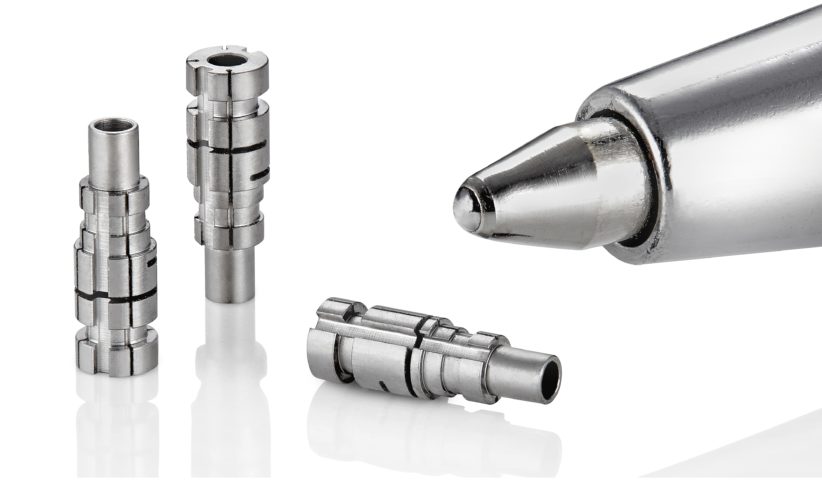

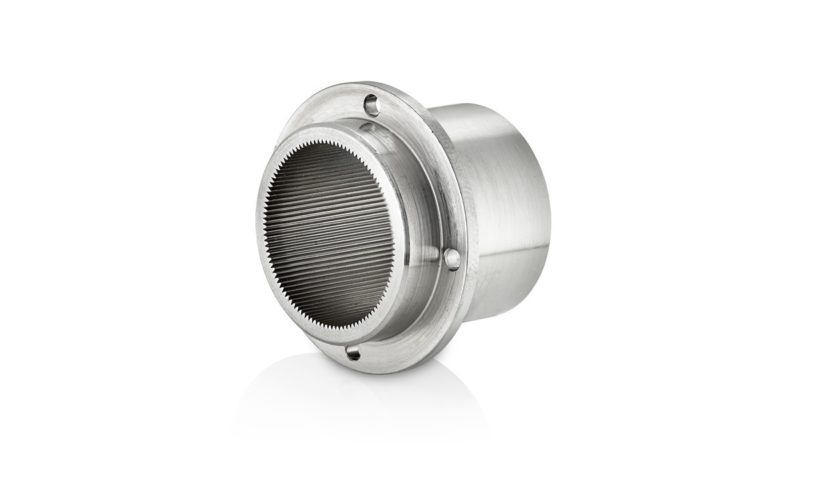

Tool Steel

Tool steels are a family carbon and alloy steels having distinct characteristics such as hardness, wear resistance, toughness, and resistance to softening at elevated temperatures

A-2, A-5, A-6, A-8

D-2, D-3, D-5

DC-53

H-11, H-12, H-13, H-19

L-6

M-1, M-2, M-3, M-4, M-2

O-1, O-6

S-1, S-7

T-1

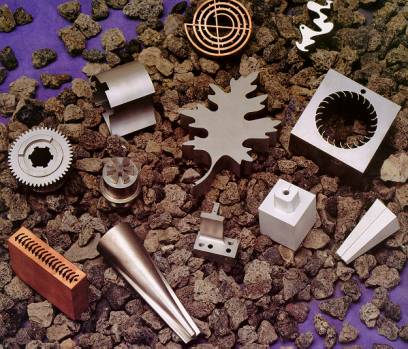

Other Metals

Titanium

Tungsten

Carbide

Exotic Metals

Molybdenum

Titanium

TC4 Titannium Alloy

TC5 Titanium Alloy

Military-grade titanium Alloy

Food-grade titanium Alloy

R53400 Titanium Alloy 9

Plastics

ABS

ABS+PC

PMMA

POM

PEEK

PET

PVC

PPSU

PPS

PTFE

PBT

PEI

HDPE

UPE

CPVC

EPP

FR-4

HIPS

LDPE

PAI

PETG

PPA

PVDF

Bakelite

Standard Tolerances

If you do not provide us with your tolerances for EDM Machining , we use standard tolerances for all processes as mentioned below. Tolerances can be greatly affected by part geometry and type of material. Our Engineers will consult you on every part of the project and will try to provide you with the highest degree of precision possible.

Service	Standard Tolerances
EDM Drill	0.0010″ to 0.0005″ and high precision tolerances as tight as 2µm Surface finishes down to 4Ra µin (micro inch)
EDM Wirecut	EDM Drilling: +/- 0.001” TOLERANCE
EDM Sinker	EDM Sinker: +/- 0.0002” TOLERANCE
*(Typical tolerance, but can vary due to type of material)

Finishes

Renderfact provides surface finishes on all EDM parts, including anodizing, electroplating, bead blasting, polishing, brushing, powder coating, and painting.

Anodizing improves corrosion resistance, enhancing wear resistance and hardness, and protecting the metal surface. Widely used in mechanical parts, aircraft, and automobile parts, precision instruments, etc.

Bead blasting results in parts with a smooth surface with a matte texture. Used mainly for visual applications and can be followed by other surface treatments.

Powder coating forms a durable, wear resistant and corrosion resistant layer on the surface of parts. Powder coating can be used to apply colors to parts and is compatible with any metal.

Electroplating can be functional, decorative or corrosion-related. Many industries use the process, including the automotive sector, in which chrome-plating of steel automobile parts is common.

Polishing is the process of creating a smooth and shiny surface, either through physical rubbing of the part or by chemical interference. The process produces a surface with significant specular reflection, but in some materials is able to reduce diffuse reflection.

Brushing is a surface treatment process in which abrasive belts are used to draw traces on the surface of a material, usually for aesthetic purposes. Most commonly applied to aluminum.

Painting the surface of a part improves its aesthetic appearance and can provide brand recognition to consumers. In addition, painting can have a protective effect on parts.
